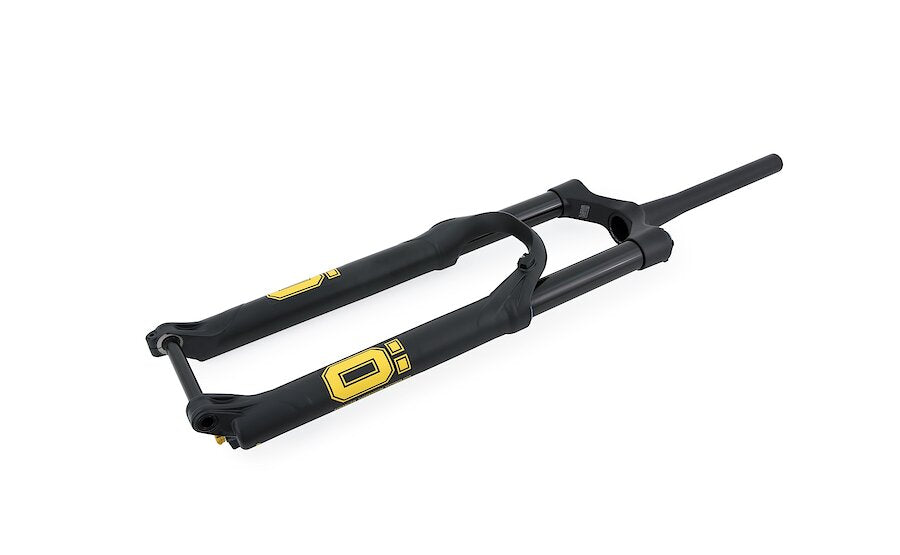

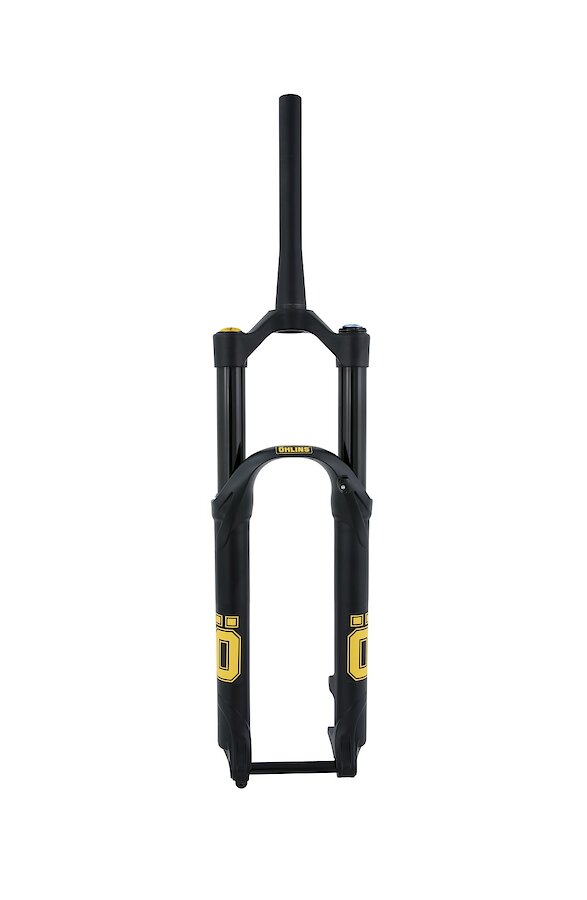

Ohlins Fork - RXF36 M2 Air - TTX18 - Various Options


Price £1,150.00

The race proven TTX18 dampening from the Ohlins DH38 Race Fork has been reworked for the RXF36 m.2 fork to give optimal traction and control on trails and Enduro race courses. The TTX18 cartridge kit featuring trail-optimized 18mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.

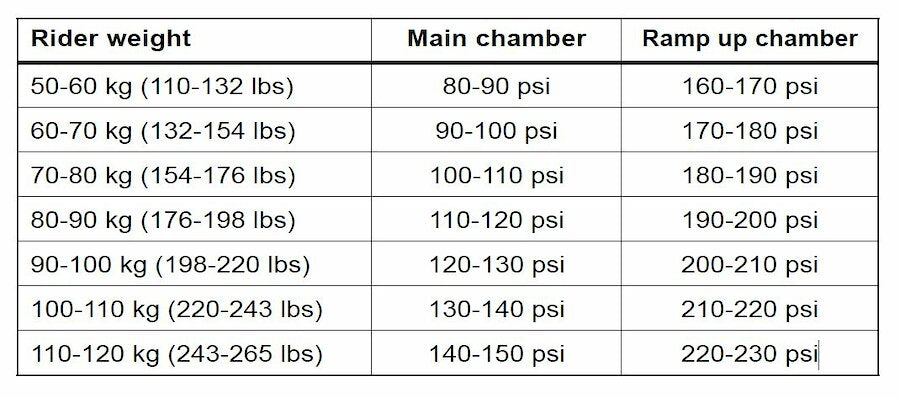

The damping adjustment range is set specifically for trail to Enduro race use with 15 clicks of low speed compression and low speed rebound. For the high speed compression damping you get 3 clicks plus a climb mode setting. The retuned twin piston three chamber air spring system allows total air spring tuning from the initial movement through to the bottom out.

Technical Specifications:

  • Weight approx. 2050 g
  • Length 570 - 590 mm (axle to crown)
  • Tapered steerer tube 28,6 - 38,1 mm
  • Stroke 140 - 170 mm
  • Stanchion tubes 36 mm
  • Axle 15 x 110 mm
  • Offset 44 mm
  • Wheel size 29
  • Maximum tire sizes 29 x 2,6 / 27,5+ x 3,2
  • Aluminium design, hard anodized
  • Fully servicable and rebuildable
  • 2 years limited warranty


  • Spring rate and progression
  • 15-click rebound damping
  • 15-click low speed compression damping
  • 3-click high speed compression damping
  • Climb mode
