2020 Orange Five Factory Spec Sterling Silver

Orange

Price £5,800.00

New Radically revised progressive suspension frame curve

New re-worked geometry for confidence, speed and stability

New Geometry optimised for 150mm front/145mm rear travel

It’s difficult to create an introduction for a bike with the reputation of the Five. It’s the original utility high-performance bike. In 20 years, its basic silhouette hasn’t really changed; you’d never mistake it for another bike. It’s the bike you ride at your local ‘spot’ on the weekend with your mates, it’s the bike you get out for a quick evenings lap, it’s the bike you ride all through winter – day or night, the bike you race enduro on, you do your first downhill race on, and the one you can take on your annual trip to the Alps. It’s the quiver killer, and it’s still a Five.

The Five still rolls on 27.5 inch wheels, albeit with meatier tyres than last year, maintains its 150mm travel fork but gains additional travel at the rear which now sits at 145mm. It has adopted the use of a metric shock and the frame has been tuned to be more progressive offering more support and bottom out resistance whilst we’ve also improved small bump compliance in the initial part of the stroke. We’ve also slightly reduced the bikes anti-squat numbers, but it still has that great turn of pace and dynamic delivery you’d expect when you get on the pedals.

A huge part of what gives our bikes their character is their geometry and the five is no different with a whole host of changes. The head angle has now slackened a degree to 65, while the BB is 5mm lower, chain stays have increased by 7mm, and the reach has increased by 10mm (size L). While the head tubes on the large and X-large bikes have been shortened as a result of rider feedback.

Much like its stable mate the Alpine 6 we have made sizing revisions to the Five giving people a better range to choose from. The XS has been dropped from the range while we’ve added a XXL at the other end of the scale and shortened the seat tube on the XL.

We’ve worked on the smaller details as well, our cable routing has seen an overhaul to be easier on the eye and keep those big loops to a minimum. All the CNC parts on the frame, upper and lower shock mounts, dropouts and bearing housings have all seen revisions.

So whatever you have planned for your Five it’ll be better prepared than ever to take you there and back with the most amount of fun and least amount of fuss.

The bikes silhouette is iconic and so is its ride.

Orange Five Highlights

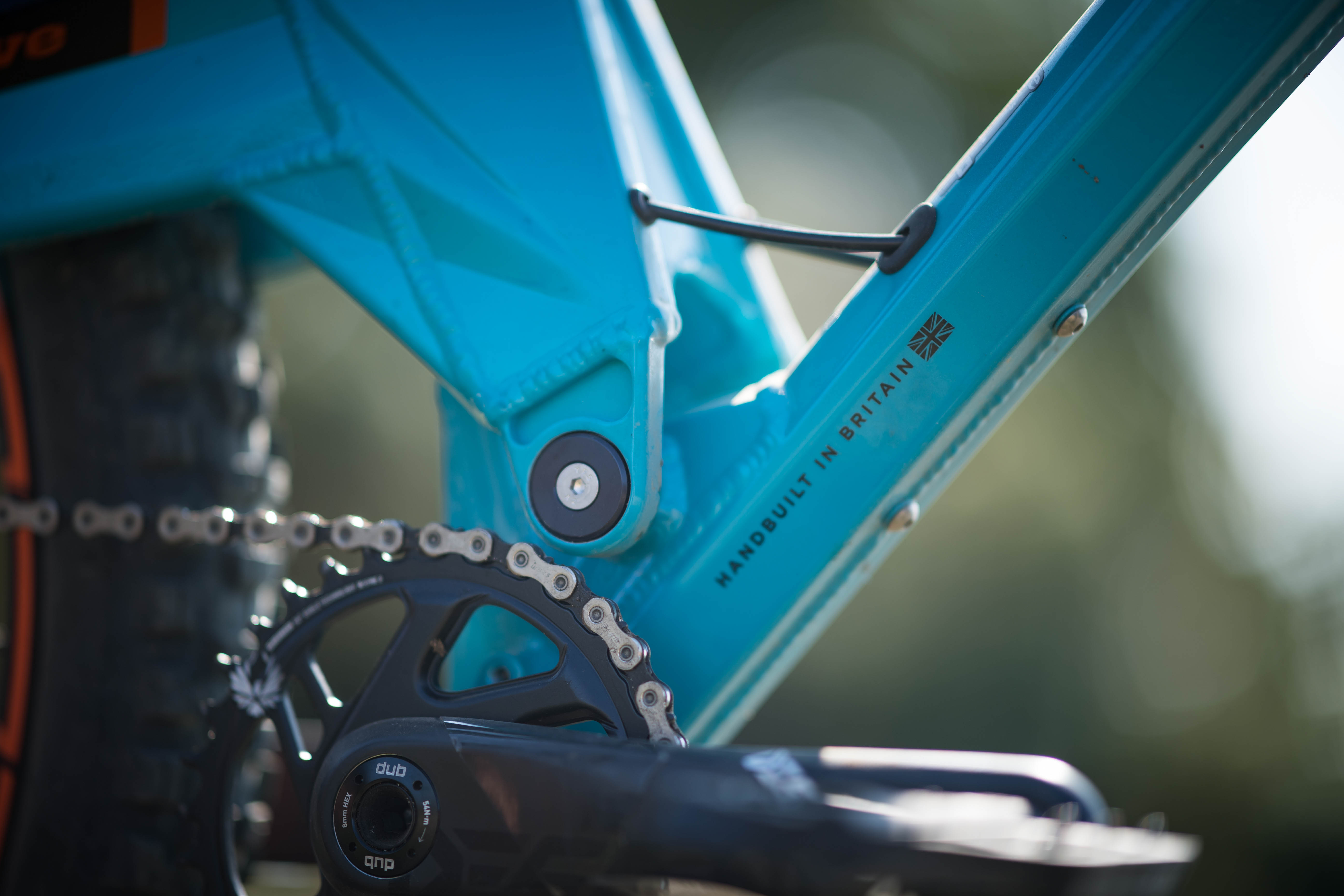

  • Frame designed and built in Britain
  • 5 year frame warranty
  • Single pivot suspension for the utmost performance, efficiency and reliability
  • New Radically revised progressive suspension frame curve
  • New re-worked geometry for confidence, speed and stability
  • New Geometry optimised for 150mm front/145mm rear travel
  • New Frame bottle bosses
  • 27.5 inch wheels
  • Boost 148 rear hub spacing
  • Aggressive trail geometry
  • Long top tube and wheelbase for high-speed stability
  • Internal dropper post routing​
  • Choose from 10 custom colours
  • Fine tune the Five with custom upgrade options
Show more

FRAME & FORK

Frame 6061-T6 Monocoque UK Formed Custom Aluminium Tubing.

Wheel Size: 27.5

Rear wheel travel 145mm

Fork Fox Factory 36 Float 150mm 27.5 (black)

Rear Shock Fox Float DPX2 Factory 210x55

Headset Hope 49mm Black

Rear Axle SRAM Maxle Ultimate (Boost 148 Hub)

WHEELS & TYRES

Wheelset Stans Flow Mk3 (Silver) + Hope Pro 4 (Black) 27

Tyres Maxxis Minion DHF 2.5 3c EXO TR / DHR II 2.4 EXO T DRIVETRAIN

Crankset SRAM Descendant Carbon Eagle 34t

Rear Mech SRAM XO1 Eagle 12spd

Cassette SRAM XG-1275 10-50T

Shifters SRAM GX Eagle 12spd

Bottom Bracket SRAM DUB

Chain SRAM GX Eagle

BRAKING

Brakes Hope Tech 3 E4 Black 203/180

FINISHING KIT

Stem Burgtec Enduro MK2 Black 50mm

Handlebar Burgtec RideWide 800mm Carbon M35

Grips Strange 130 Single Lock-On Black

Seatpost Fox Factory Transfer 150mm Kashima

Saddle SDG Radar Cromo Rail Black/Black

Seat Clamp Hope Bolted Black
